Topic 14: Chemical Bonding and Structure
For HL students only
1. [1 mark]
Which elements are capable of forming expanded octets?
I. Nitrogen
II. Phosphorus
III. Arsenic
II. Phosphorus
III. Arsenic
A. I and II only
B. I and III only
C. II and III only
D. I, II and III
2. [1 mark]
Which molecule has a tetrahedral molecular geometry?
A. HNO3
B. SF4
C. XeF4
D. XeO4
3. [1 mark]
In which compound are all carbon atoms sp3 hybridized?
A. C2H2
B. C2H2Cl2
C. C2Cl4
D. C2Cl6
4. [1 mark]
What is the formal charge of the oxygen atom in H3O+?
A. −2
B. −1
C. 0
D. +1
5. [1 mark]
What is the molecular geometry of SF4?
A. Tetrahedral
B. Trigonal bipyramidal
C. See-saw
D. Square planar
6a. [1 mark]
Nitric acid is usually produced by the oxidation of ammonia.
Draw arrows in the boxes to represent the electron configuration of a nitrogen atom.
6b. [2 marks]
Deduce a Lewis (electron dot) structure of the nitric acid molecule, HNO3, that obeys the octet rule, showing any non-zero formal charges on the atoms.
bonds and non-bonding pairs correct ✔
formal charges correct ✔
Accept dots, crosses or lines to represent electron pairs.
Do not accept resonance structures with delocalised bonds/electrons.
Accept + and – sign respectively.
Do not accept a bond between nitrogen and hydrogen.
For an incorrect Lewis structure, allow ECF for non-zero formal charges.
6c. [3 marks]
Explain the relative lengths of the three bonds between N and O in nitric acid.
6d. [1 mark]
State a technique used to determine the length of the bonds between N and O in solid HNO3.
6e. [1 mark]
A mixture of nitric acid and sulfuric acid can be used to convert benzene to nitrobenzene, C6H5NO2.
Write an equation for the reaction between the acids to produce the electrophile, NO2+.
7. [1 mark]
Which molecules contain two pi (π) bonds?
I. HCN
II. H2CO3
III. H2C2O4
II. H2CO3
III. H2C2O4
A. I and II only
B. I and III only
C. II and III only
D. I, II and III
8. [1 mark]

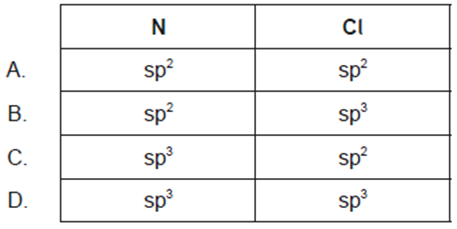

What is the hybridization of nitrogen and chlorine in NCl3?
9a. [2 marks]
Hybridization of hydrocarbons affects their reactivity.

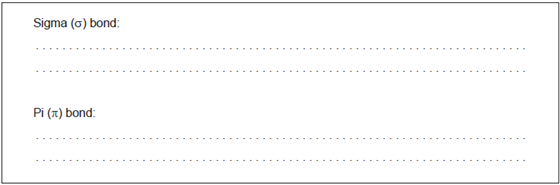

Distinguish between a sigma and pi bond.
9b. [1 mark]

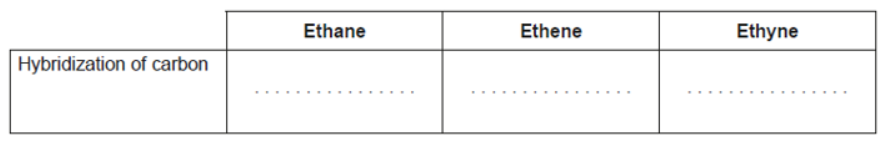

Identify the hybridization of carbon in ethane, ethene and ethyne.
